Unused 150 HP 5-Inch Industrial Pump Package

2007 Nidec/U.S. Motors 150 HP Motor with C5426 Pump

Complete skid-mounted industrial pump assembly featuring a 150 HP Nidec/U.S. Motors electric motor connected to a 5-inch C5426 centrifugal pump. The unit was manufactured in 2007 and reportedly purchased as spare equipment but never installed or placed into service.

The motor, pump, coupling, coupling guard, controls, and structural steel base are included as one complete package. This assembly is suitable for high-volume industrial water transfer, municipal water and wastewater service, process-water circulation, cooling-water systems, dewatering, and other heavy-duty pumping applications.

Equipment specifications

Electric motor

• Manufacturer: Nidec Motor Corporation / U.S. Motors

• Catalog number: H150P2F

• Model: DK24

• Power: 150 HP

• Voltage: 460V

• Phase: Three-phase

• Frequency: 60 Hz

• Speed: 1,785 RPM

• Full-load current: 171 amps

• Frame: 445T

• Service factor: 1.15

• Duty rating: Continuous

• Insulation class: F

• Approximate motor weight: 1,700 lb

• Motor enclosure: Totally enclosed industrial configuration

Pump package

• Pump model: C5426

• Nominal connection size: 5 inches

• Horizontal centrifugal-pump configuration

• Flexible motor-to-pump coupling

• Protective coupling guard

• Common structural-steel mounting base

• Local control/starter enclosure

• Flanged suction and discharge connections

Condition

This equipment is being offered as unused surplus. It has reportedly never been installed or operated in service. Cosmetic dust, paint wear, surface oxidation, and other signs of long-term storage may be present.

Because the assembly has been stored since 2007, it is being sold without a factory warranty. A buyer should perform normal commissioning procedures before operation, including insulation-resistance testing, bearing inspection, lubrication, seal inspection, shaft rotation, coupling alignment, and verification of the pump’s operating requirements.

Sale information

• Sold as one complete pump and motor package

• Available for inspection

• Loading assistance may be available by prior arrangement

• Freight and transportation are the buyer’s responsibility

• Additional photographs and information are available upon request

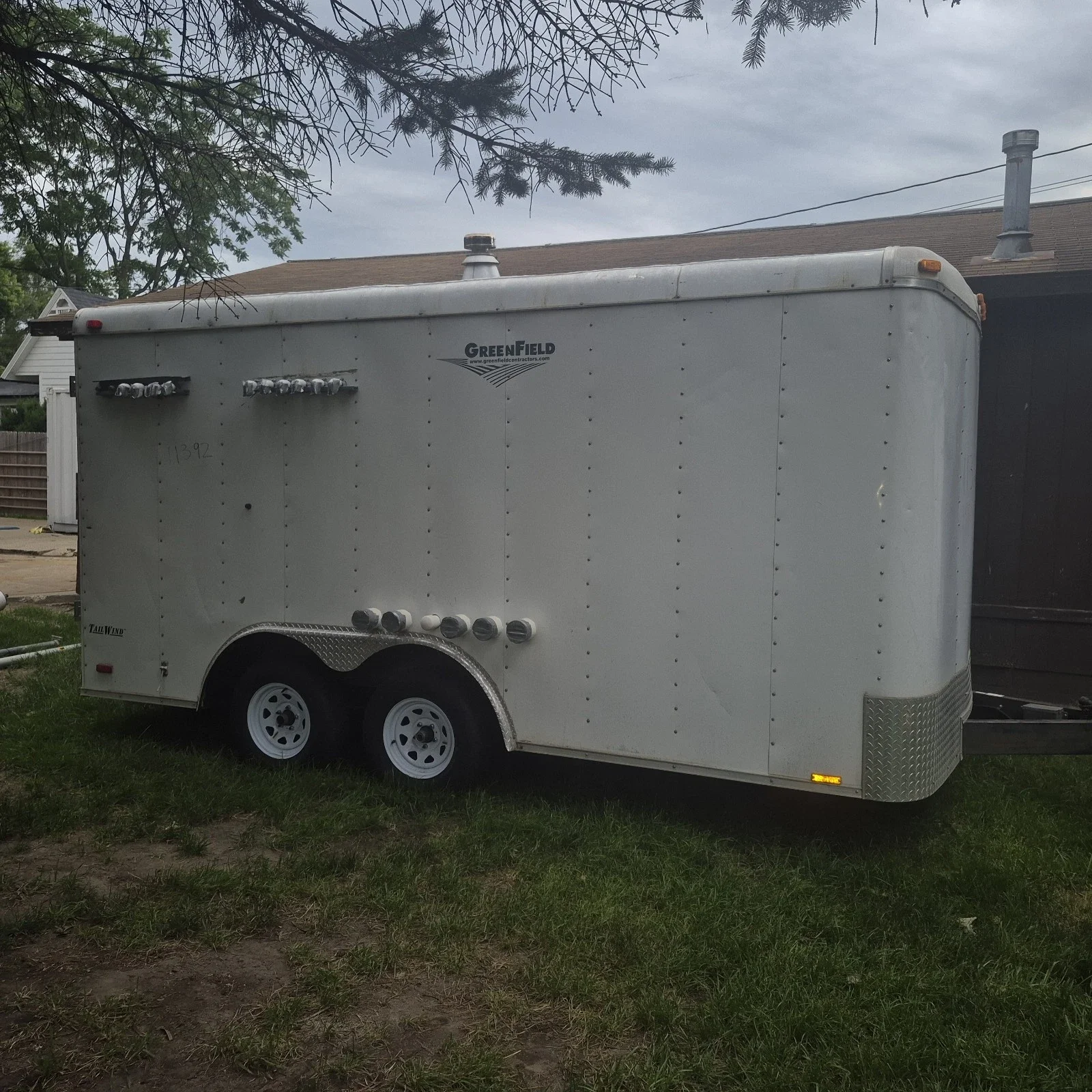

2009 GreenField Trailer-Mounted SVE / Air Sparge System

This GreenField Contractors remediation system combines soil vapor extraction, air sparging, moisture separation, liquid transfer, filtration, and remote monitoring in a mobile Cargo Mate Blazer tandem-axle trailer.

The SVE side is built around an Ametek Rotron EN909BG72WL regenerative blower with a 50-gallon moisture separator, Solberg inlet filtration, vacuum gauges, and Blue-White well-flow meters. The air-sparge side uses a Becker KDT 3.80 rotary-vane pressure unit powered by a Toshiba 7.5 HP three-phase motor. Separate manifolds provide individual flow and pressure control for multiple extraction and sparge wells.

The trailer also includes a Myers transfer pump, liquid-phase carbon vessel, automatic level controls, programmable operating timers, and a Sensaphone 2000 remote alarm and monitoring system. Clearly labeled SVE, sparge, and transfer controls provide Hand/Off/Auto operation.

Key Equipment

• System integrator: GreenField Contractors

• Trailer: Cargo Mate Blazer enclosed tandem-axle trailer

• SVE blower: Ametek Rotron EN909BG72WL

• SVE blower limits: 100 in. H₂O suction or 120 in. H₂O pressure

• Moisture separator: 50-gallon capacity

• Vacuum filter: Solberg CSL-235P-300

• SVE flow meters: Blue-White F-452N, 40–240 SCFM

• Air-sparge unit: Becker KDT 3.80

• Becker capacity: 66/77 m³/h at 50/60 Hz

• Maximum Becker pressure: 1,500 mbar

• Sparge motor: Toshiba 7.5 HP, 230/460V, three-phase

• Sparge flow meters: Blue-White, 1–12 SCFM

• Transfer pump: Myers CT15FAB

• Monitoring: Sensaphone 2000

• Controls: SVE, sparge, and transfer Hand/Off/Auto controls

Electrical Requirements

The Toshiba air-sparge motor is rated for 230/460V, three-phase, 60 Hz operation. The Ametek SVE blower nameplate lists maximum amperage of 48/24 amps at 60 Hz. The trailer includes exterior electrical service equipment, meter, disconnect, and an integrated control cabinet.

The system’s present configured voltage, total connected load, and required main service amperage should be confirmed before installation.

Condition

This is a used surplus remediation system. Industrial Jerry LLC has not connected, operated, or performance-tested the equipment. It is offered as-is, with buyer inspection encouraged. Component condition, electrical configuration, operating capacity, completeness, and suitability for a specific remediation project should be independently verified.

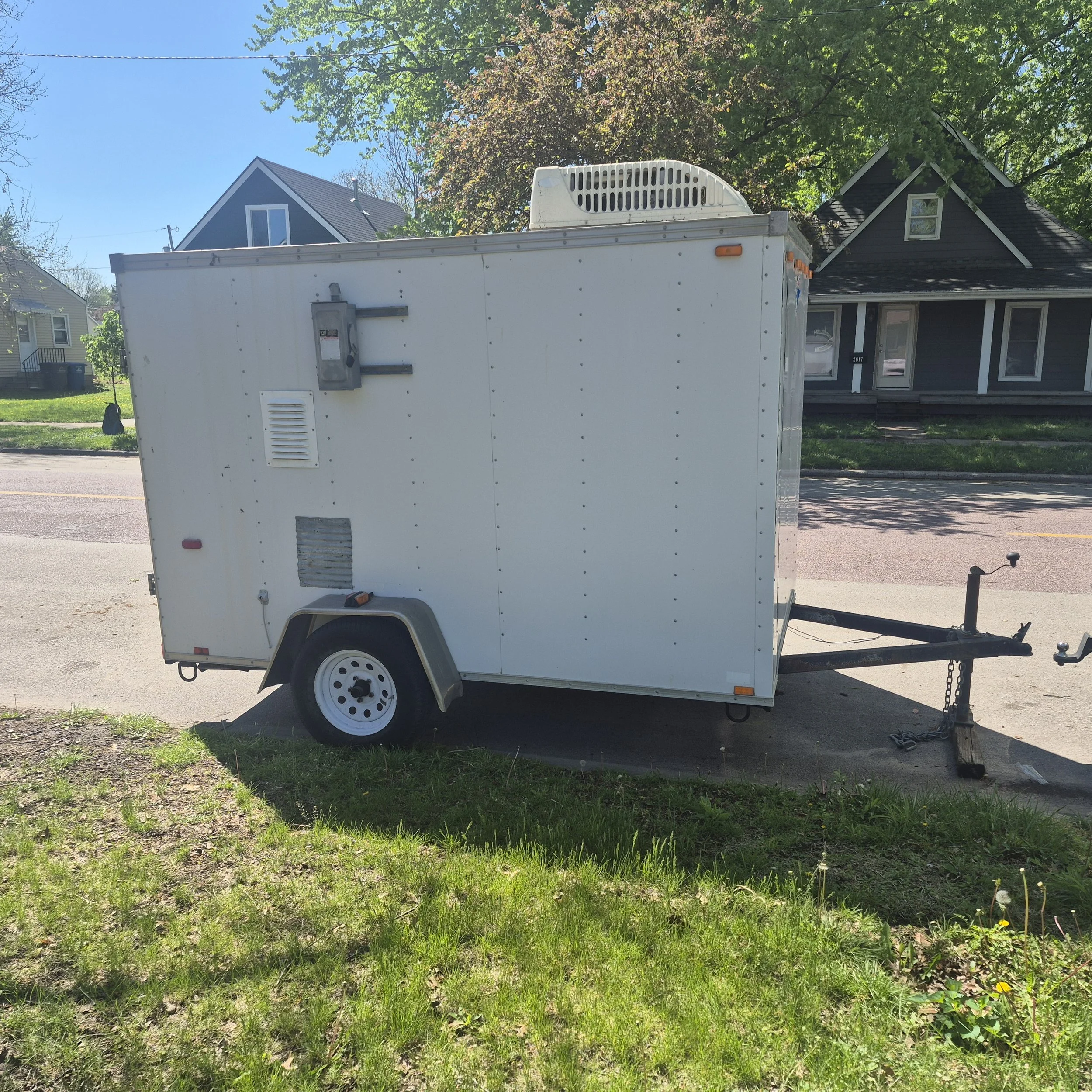

Trailer-mounted oxygen injection system manufactured by Matrix Environmental Technologies, designed for in-situ groundwater remediation and pilot-scale oxygen sparging applications.

This is a complete, self-contained system—ideal for environmental contractors, consultants, or remediation firms performing pilot studies or small-site cleanup.

Key Components:

    .  Kaeser SX 5 Rotary  Screw Compressor

    .  Kaeser TA 5 Refrigeration Dryer mfd 07/2022

• AirSep PSA Oxygen Generator Model ASA-(30) (~30 SCFH)

• Integrated control panel

• Trailer-mounted (towable, compact footprint)

• Plumbed and configured for oxygen injection/sparging

       for dissolved oxygen enhancement and aerobic bioremediation

Matrix Oxygen Injection System generates high-purity oxygen gas from compressed air, which is then pulse-injected into groundwater at controlled rates. This process achieves dissolved oxygen saturation levels exceeding 50 mg/L, significantly enhancing aerobic bioremediation. Notably, this method is safe for use beneath occupied buildings and in areas with vapor intrusion concerns. It is also effective in treating migrating groundwater plumes and potable water aquifers.

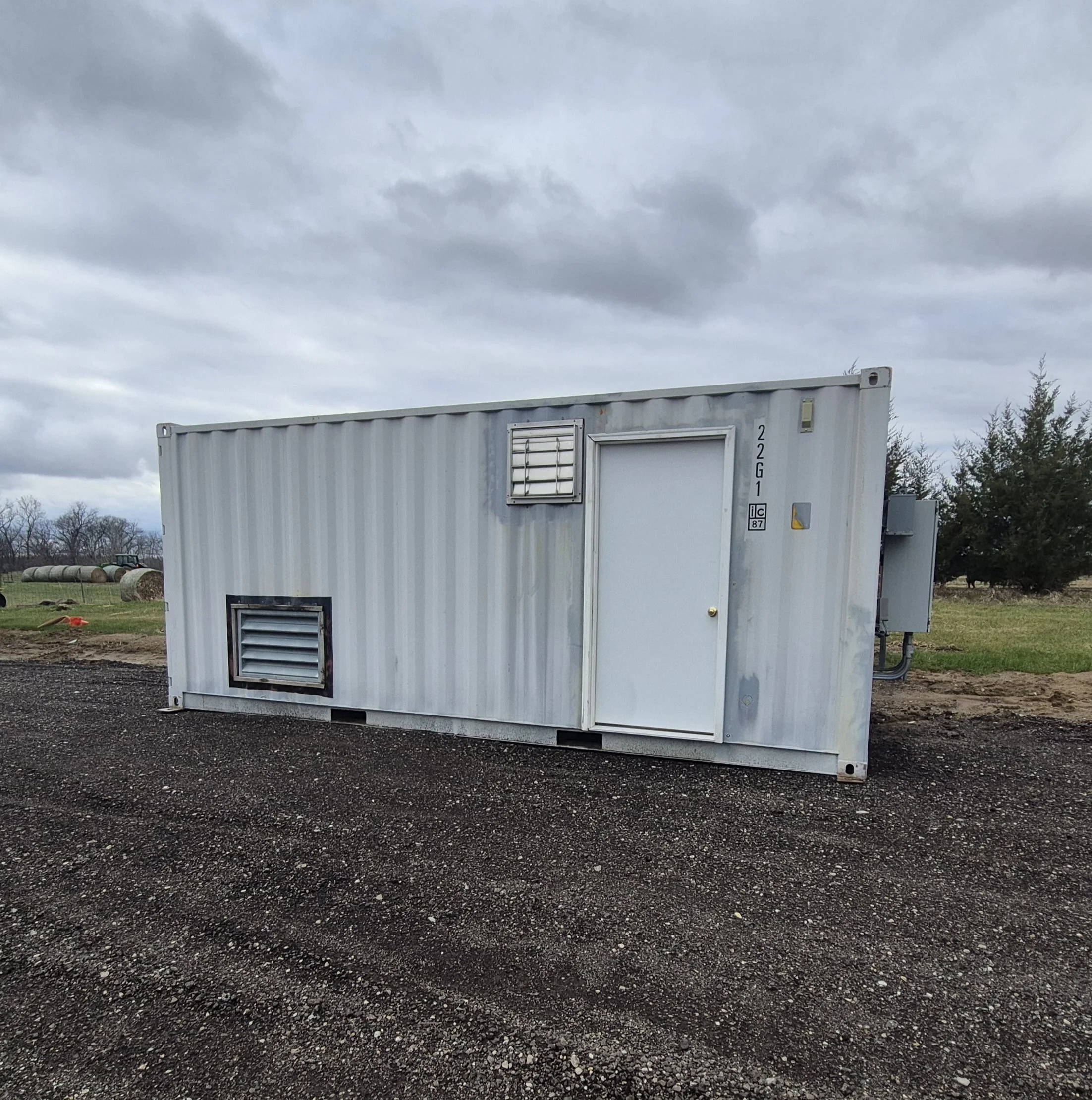

Manufactured in 2006 by Product Level Control (Minnesota), a builder of industrial environmental and remediation systems. These systems are designed for long service life and are commonly used in field applications for decades.

System Includes:

• EZ6.4 SS 4-tray air stripper tower

• 5hp Blower system

• Integrated control panel

• Hydro Quip AGM Oil/water separator 18-60 gpm flow rate, 325 gal capacity with poly holding tank

  . 300 gallon double wall

     storage tank

• Fully enclosed 20’ shipping container housing

This is a complete groundwater remediation unit, including blower, control panel, and oil/water separator—designed for efficient removal of VOCs such as BTEX, solvents, and fuel-related contamination

Description:

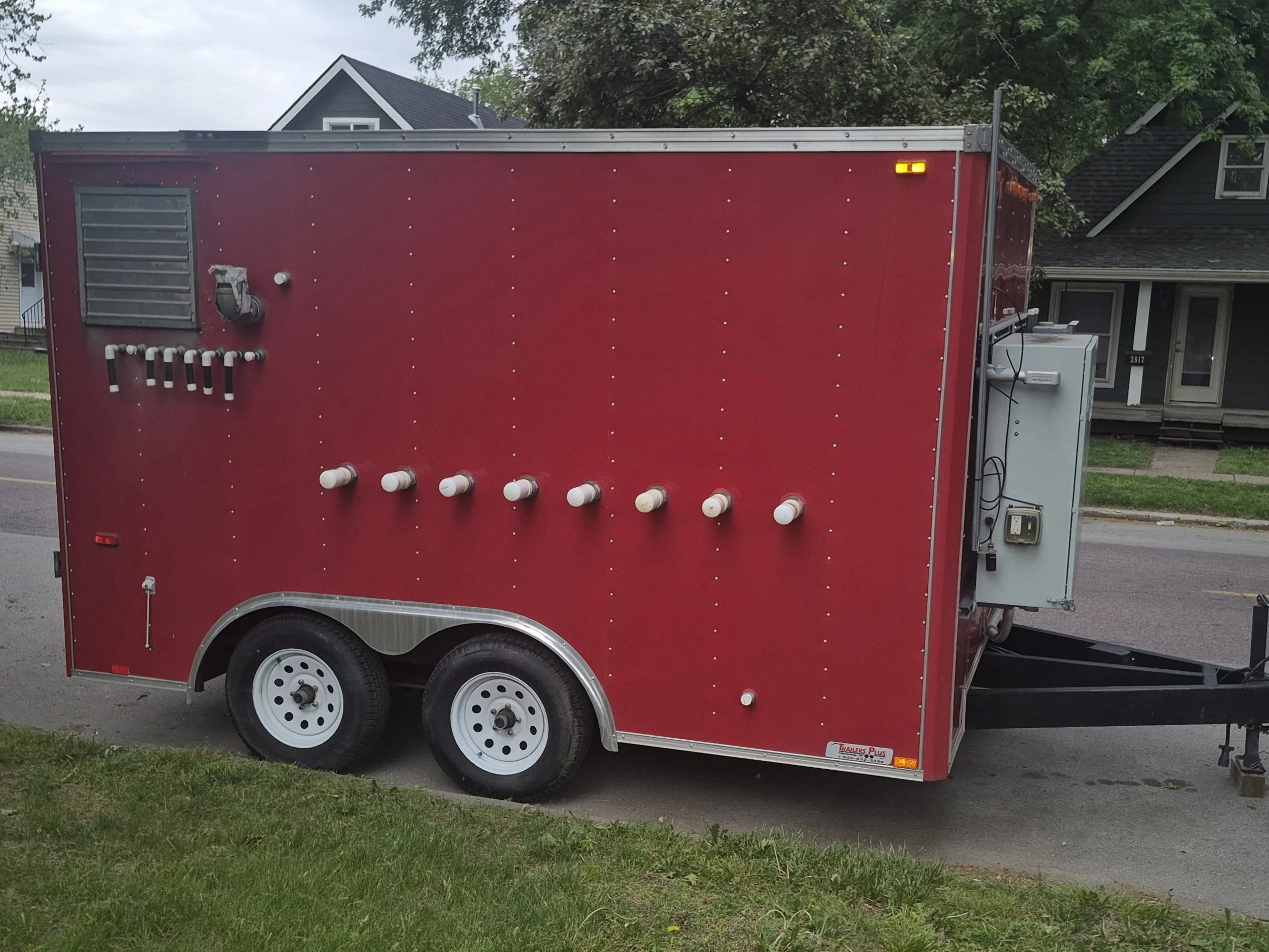

Trailer-mounted SVE/Air Sparge Environmental Remediation System

Main system

• Manufacturer: Maple Leaf Environmental Equipment Ltd.

• Model: VPE, CAPE

• Serial No.: 200650

• Use/classification: Process equipment in a trailer/skid; Class I, Division 2, Group D hazardous-location rated

• Temperature class: T2A

• Electrical: 208/120 VAC, 3-phase, 60 Hz

• Total load: about 93–93.4 amps

• Total horsepower: about 26.8 HP

• Largest motor: 15 HP

• Recommended max overcurrent protection: 125 amps

• Control panel: UL 698A industrial control panel for hazardous locations, NEMA 3R, 200-amp main disconnect

Major components shown

1. Soil vapor extraction / vapor blower

   • Listed as B-701 SVE Blower

   • Manufacturer: Rotron / Ametek

   • Model: EN909BG72MWL

   • 230/460V, 3-phase

   • Rated max amps: 48/24

   • Rated for up to 100 inches H₂O suction or 120 inches H₂O pressure

2. Air sparge compressor

   • Listed as C-2201 Sparge Compressor

   • Manufacturer: Becker

   • Type/model: KDT 3.100

   • Year: 2021

   • Power required: 4.9/6.4 kW

   • Capacity: 99/118 m³/h

   • Pressure: up to 1500 mbar

3. Liquid / groundwater pump

   • Listed as P-401 VLS Pump

   • Manufacturer: Goulds

   • Model: NPE1ST1F7C4

4. Building/exhaust fan

   • Listed as F-7901 Building Fan

   • Manufacturer: Canarm

   • Model: SD18-XPF

5. Treatment plumbing/manifolds

   • Multiple valved manifolds labeled for air and water

   • Flow meters, gauges, filters, pressure/vacuum gauges, and sampling/adjustment points

   • Likely set up to pull vapors from wells, inject air into groundwater/soil, and move/treat extracted water or vapor streams

6. Control cabinet

   • Separate run controls for:

     • P-401 VLS

     • B-701 SVE

     • C-2201 compressor

     • AV-2801 sparge

     • AV-2802 sparge

   • Alarm lights for VLS, SVE, sparge, and overload

   • Runtime meters and hand/off/auto selectors

Please contact us with any questions. Nationwide delivery is available.

We have 6 Remediation systems currently available.

Pace Trailer-Mounted SVE and Air Sparge Remediation System

Self-contained environmental remediation system housed in a tandem-axle enclosed Pace trailer. Reportedly assembled by GreenField Contractors in 2009, the system is configured for soil vapor extraction, air sparging, liquid transfer and multi-well operation.

The trailer contains separate SVE and sparge equipment, centralized electrical controls, process vessels and multiple connection points for field wells. Individual valves and gauges allow operators to regulate and monitor multiple extraction or injection lines.

Major equipment

• Ametek Rotron EN909BG72MWL regenerative blower for soil vapor extraction

  • 208–230/415–460 volts

  • Three-phase power

  • Nameplate ratings of up to 100 inches H₂O suction or 120 inches H₂O pressure

• Gardner Denver/Elmo Rietschle Zephyr compressor package, marked 2021

  • Rated at 2.20 bar

  • 120 m³/hour capacity

  • 7.46 kW

  • 3,600 RPM

• Multi-port SVE and sparge manifolds with individual isolation valves and gauges

• Vertical moisture-separation or knockout vessel

• Fiberglass media/filter vessel

• Integrated transfer-pump circuit

• Roof-mounted process exhaust

• Electrical control panel with ABB motor starters, breakers, relays and overload protection

• Hand/Off/Auto controls for the SVE blower, sparge compressor and transfer pump

• Separate SVE and sparge hour meters

• Sensaphone 2000 eight-input monitoring and alarm unit with power and battery-status monitoring; manufacturer support documents remain available for this legacy model.

• Exterior field-hose connection ports

• Side and rear access doors for equipment service

Listing description

This trailer provides a mobile, centralized platform for operating an SVE and air-sparge remediation project. It combines the blower, compressor, manifolds, separator vessels, transfer equipment, monitoring system and electrical controls inside a weather-protected enclosure. The multi-line manifold configuration makes it suitable for projects involving several extraction or injection wells.

The trailer and installed equipment appear substantially complete, with normal cosmetic wear and some visible surface corrosion inside the electrical enclosure. The system was acquired as surplus equipment and has not been fully tested by the current owner. It is therefore being offered as-is, with operating condition and final system configuration to be verified by the buyer.
