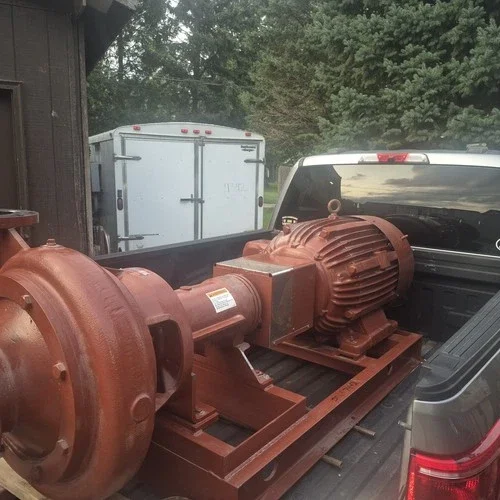

Complete skid-mounted industrial pump assembly featuring a 150 HP Nidec/U.S. Motors electric motor connected to a 5-inch C5426 centrifugal pump. The unit was manufactured in 2007 and reportedly purchased as spare equipment but never installed or placed into service.
The motor, pump, coupling, coupling guard, controls, and structural steel base are included as one complete package. This assembly is suitable for high-volume industrial water transfer, municipal water and wastewater service, process-water circulation, cooling-water systems, dewatering, and other heavy-duty pumping applications.

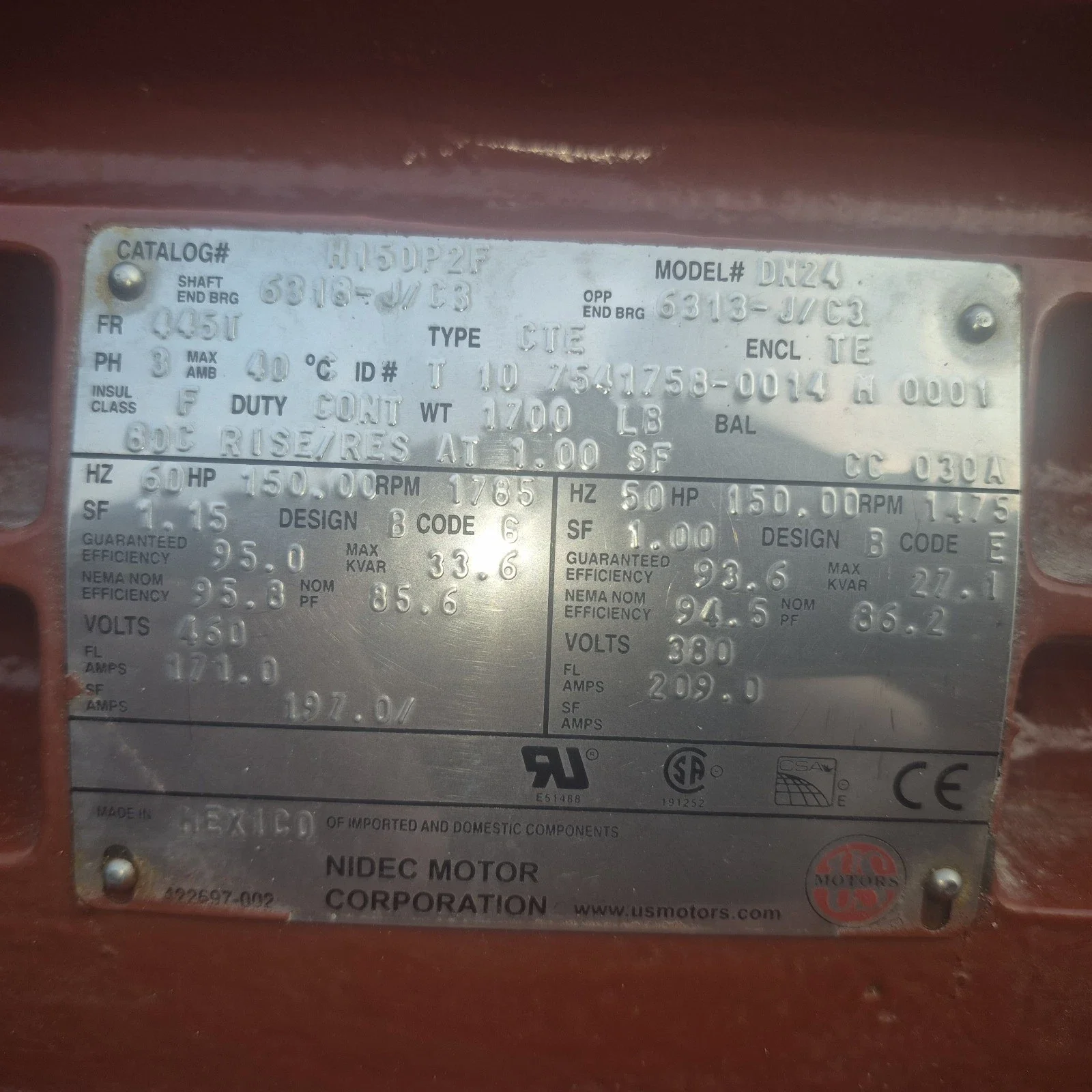

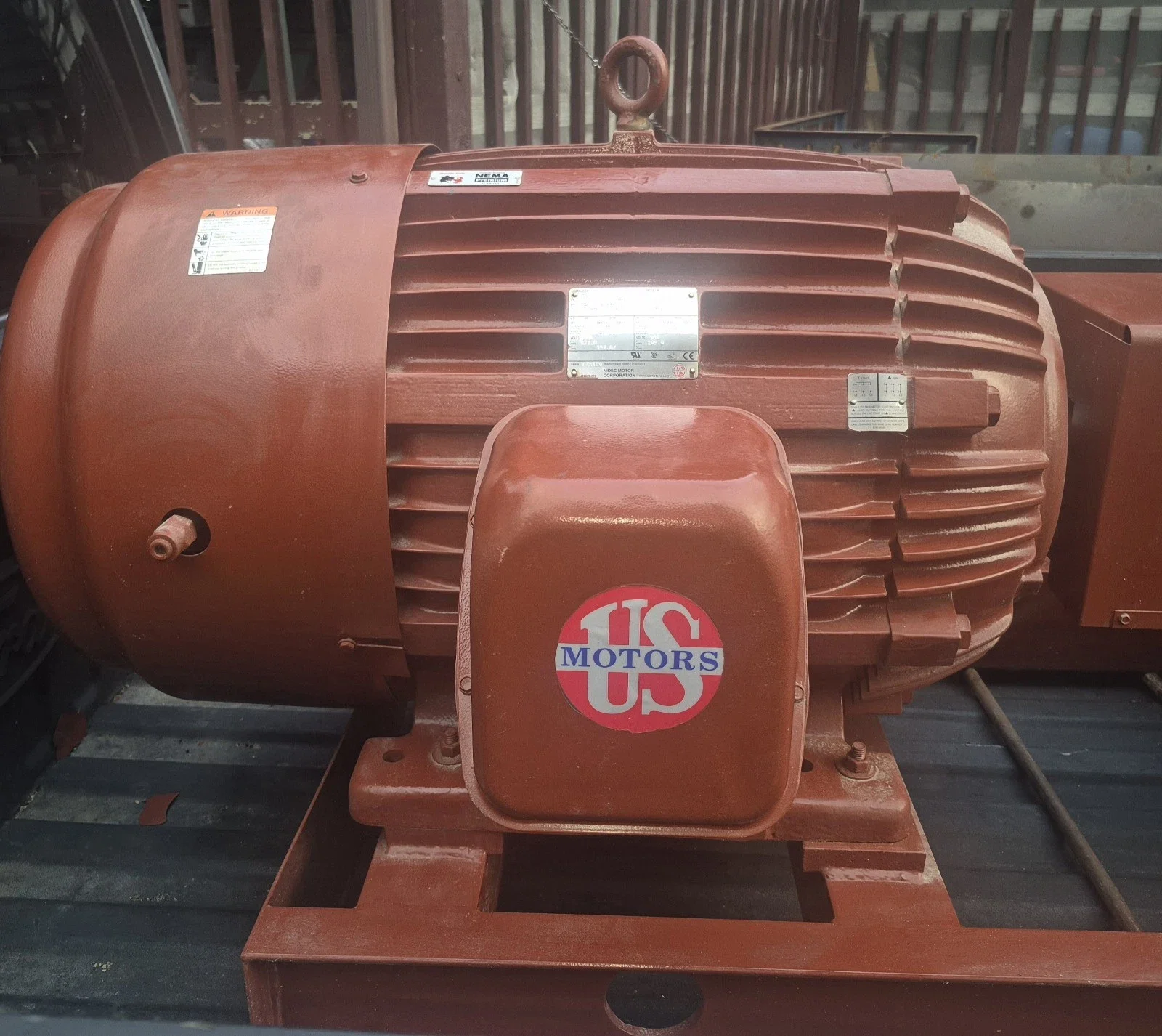

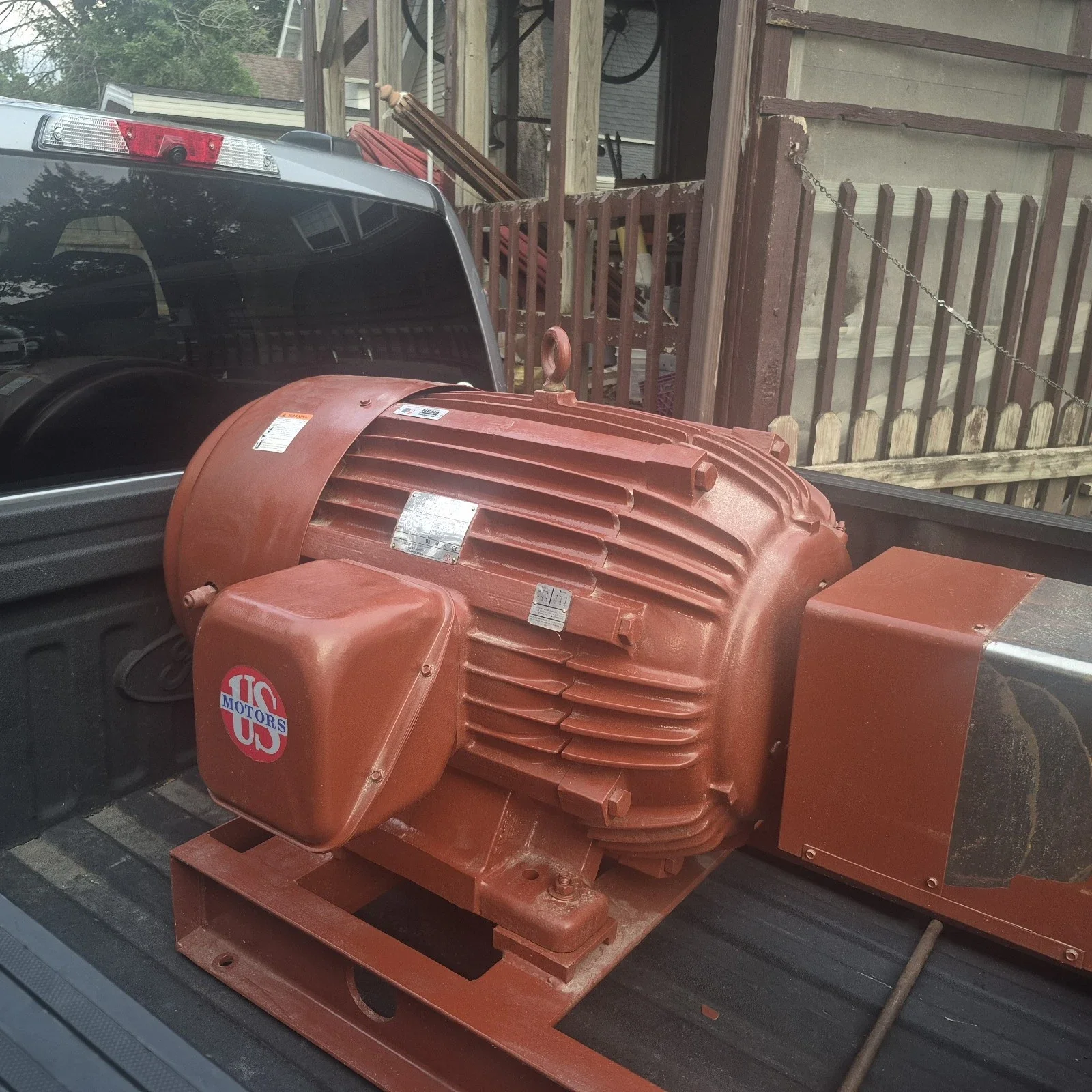

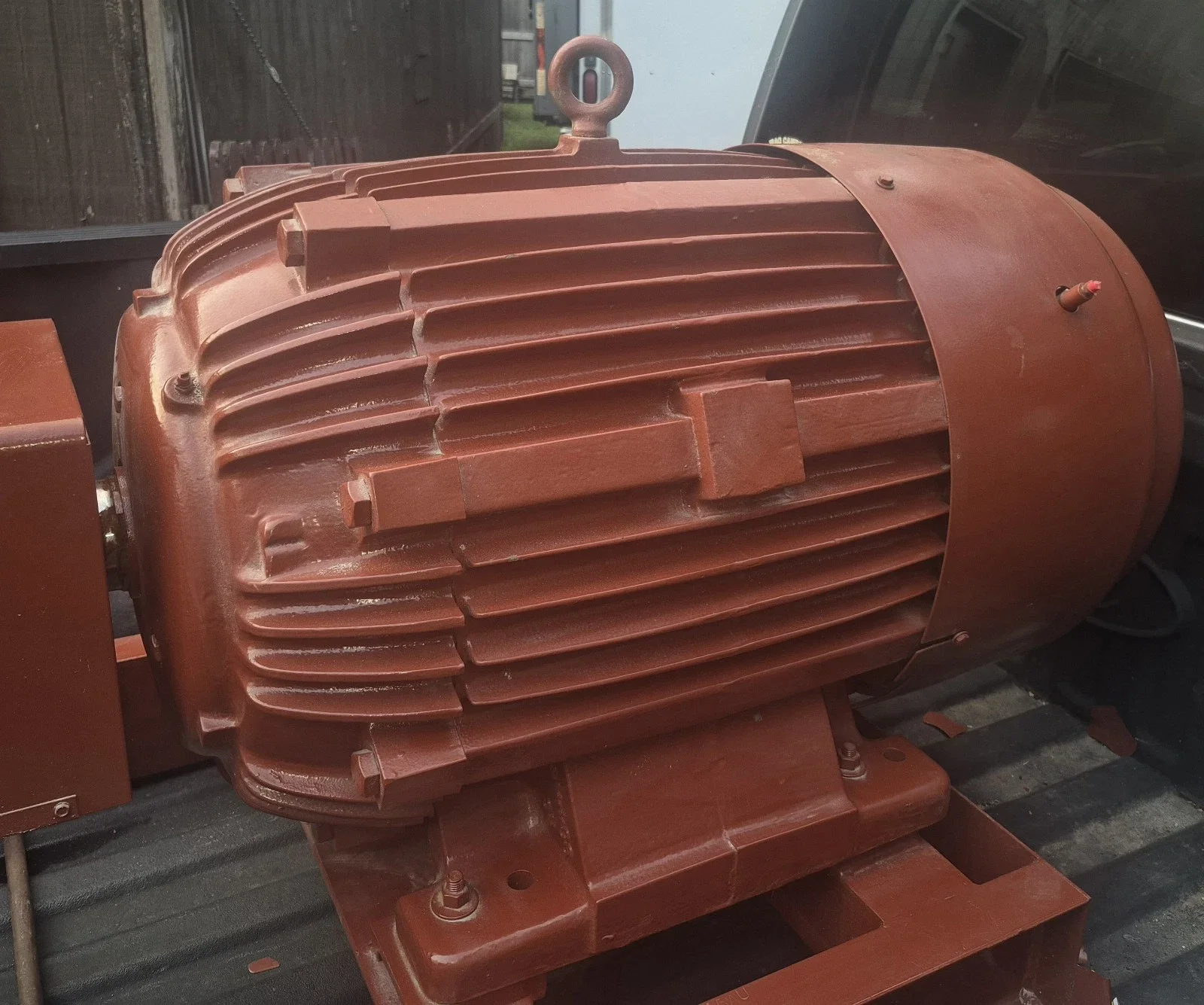

Electric motor
Manufacturer: Nidec Motor Corporation / U.S. Motors
Catalog number: H150P2F
Model: DK24
Power: 150 HP
Voltage: 460V
Phase: Three-phase
Frequency: 60 Hz
Speed: 1,785 RPM
Full-load current: 171 amps
Frame: 445T
Service factor: 1.15
Duty rating: Continuous
Insulation class: F
Approximate motor weight: 1,700 lb
Motor enclosure: Totally enclosed industrial configuration

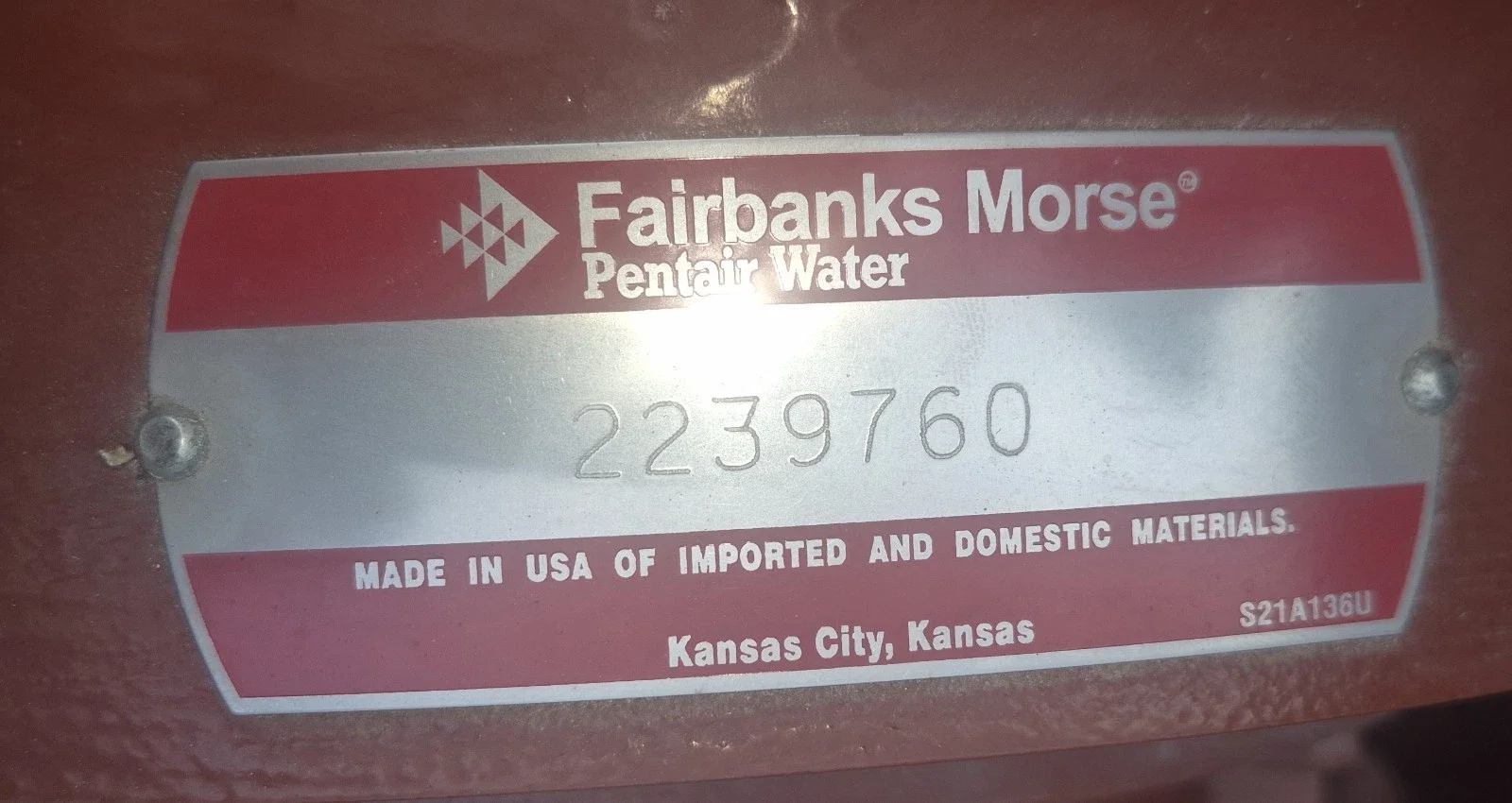

Pump package
Pump model: C5426
Nominal connection size: 5 inches
Horizontal centrifugal-pump configuration
Flexible motor-to-pump coupling
Protective coupling guard
Common structural-steel mounting base
Local control/starter enclosure
Flanged suction and discharge connections
This equipment is being offered as unused surplus. It has reportedly never been installed or operated in service. Cosmetic dust, paint wear, surface oxidation, and other signs of long-term storage may be present.
Because the assembly has been stored since 2007, it is being sold without a factory warranty. A buyer should perform normal commissioning procedures before operation, including insulation-resistance testing, bearing inspection, lubrication, seal inspection, shaft rotation, coupling alignment, and verification of the pump’s operating requirements.
Sold as one complete pump and motor package
Available for inspection
Loading assistance may be available by prior arrangement
Freight and transportation are the buyer’s responsibility
Additional photographs and information are available upon request
