This GreenField Contractors remediation system combines soil vapor extraction, air sparging, moisture separation, liquid transfer, filtration, and remote monitoring in a mobile Cargo Mate Blazer tandem-axle trailer.

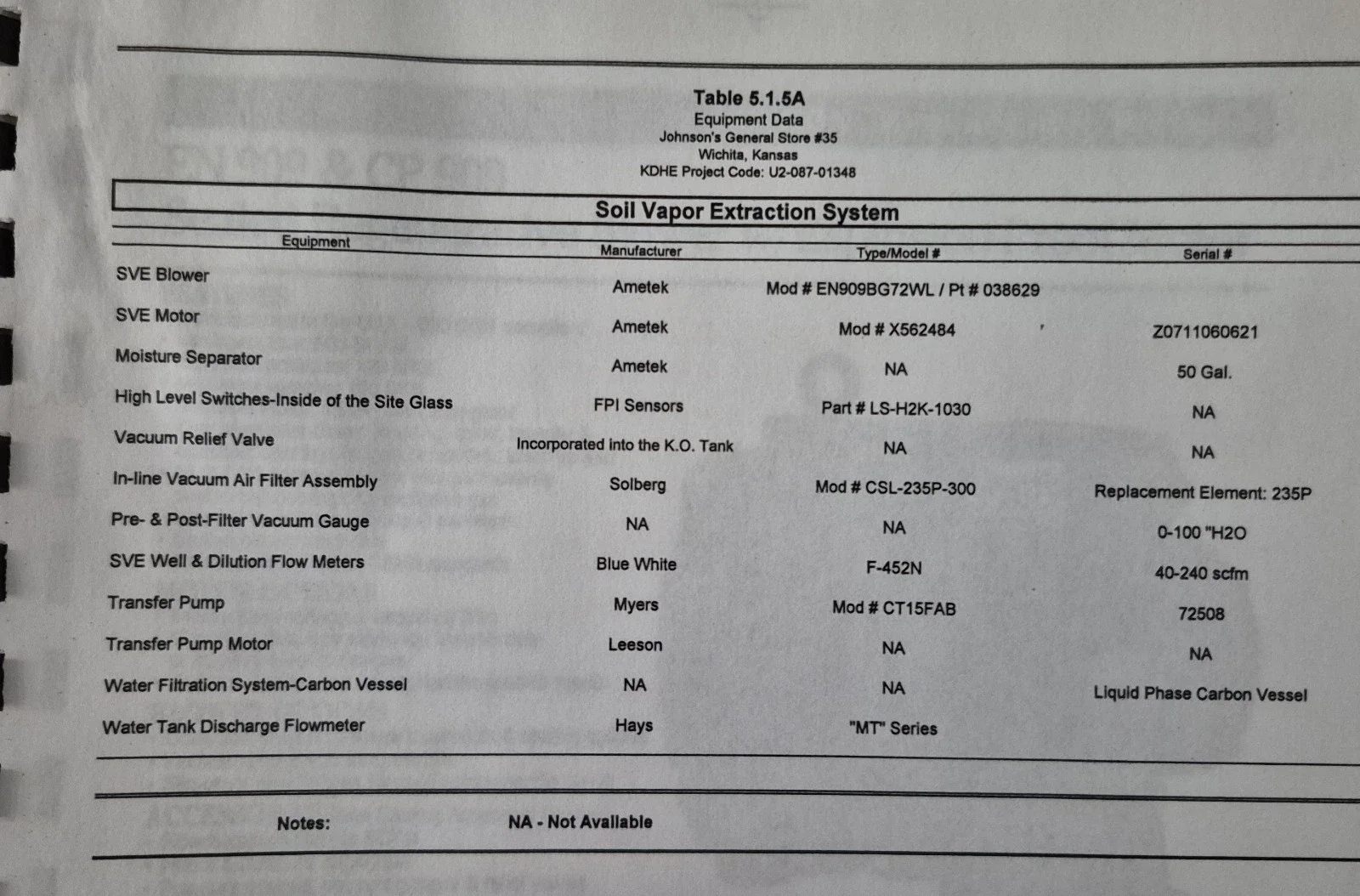

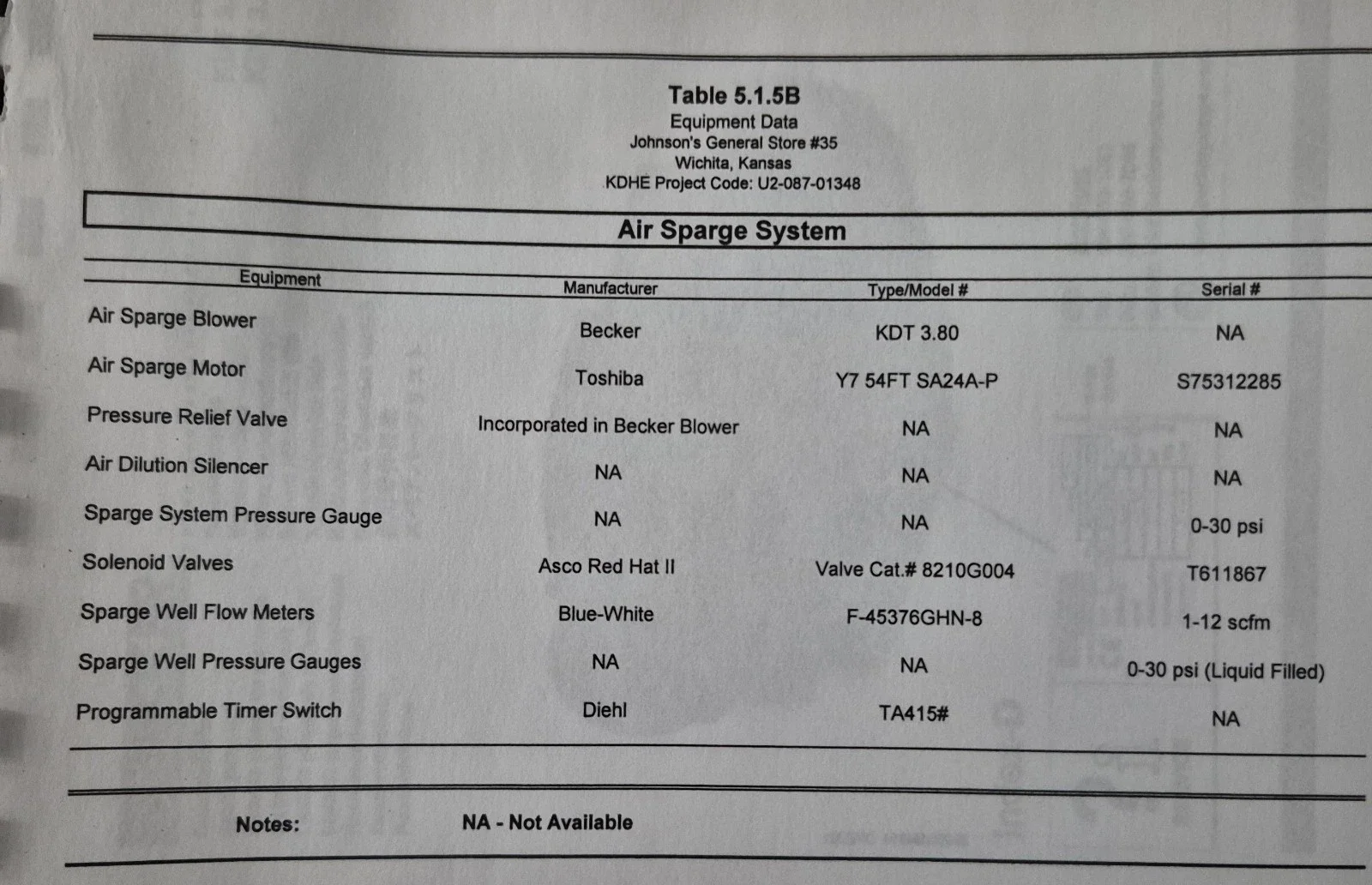

The SVE side is built around an Ametek Rotron EN909BG72WL regenerative blower with a 50-gallon moisture separator, Solberg inlet filtration, vacuum gauges, and Blue-White well-flow meters. The air-sparge side uses a Becker KDT 3.80 rotary-vane pressure unit powered by a Toshiba 7.5 HP three-phase motor. Separate manifolds provide individual flow and pressure control for multiple extraction and sparge wells.
The trailer also includes a Myers transfer pump, liquid-phase carbon vessel, automatic level controls, programmable operating timers, and a Sensaphone 2000 remote alarm and monitoring system. Clearly labeled SVE, sparge, and transfer controls provide Hand/Off/Auto operation.
System integrator: GreenField Contractors

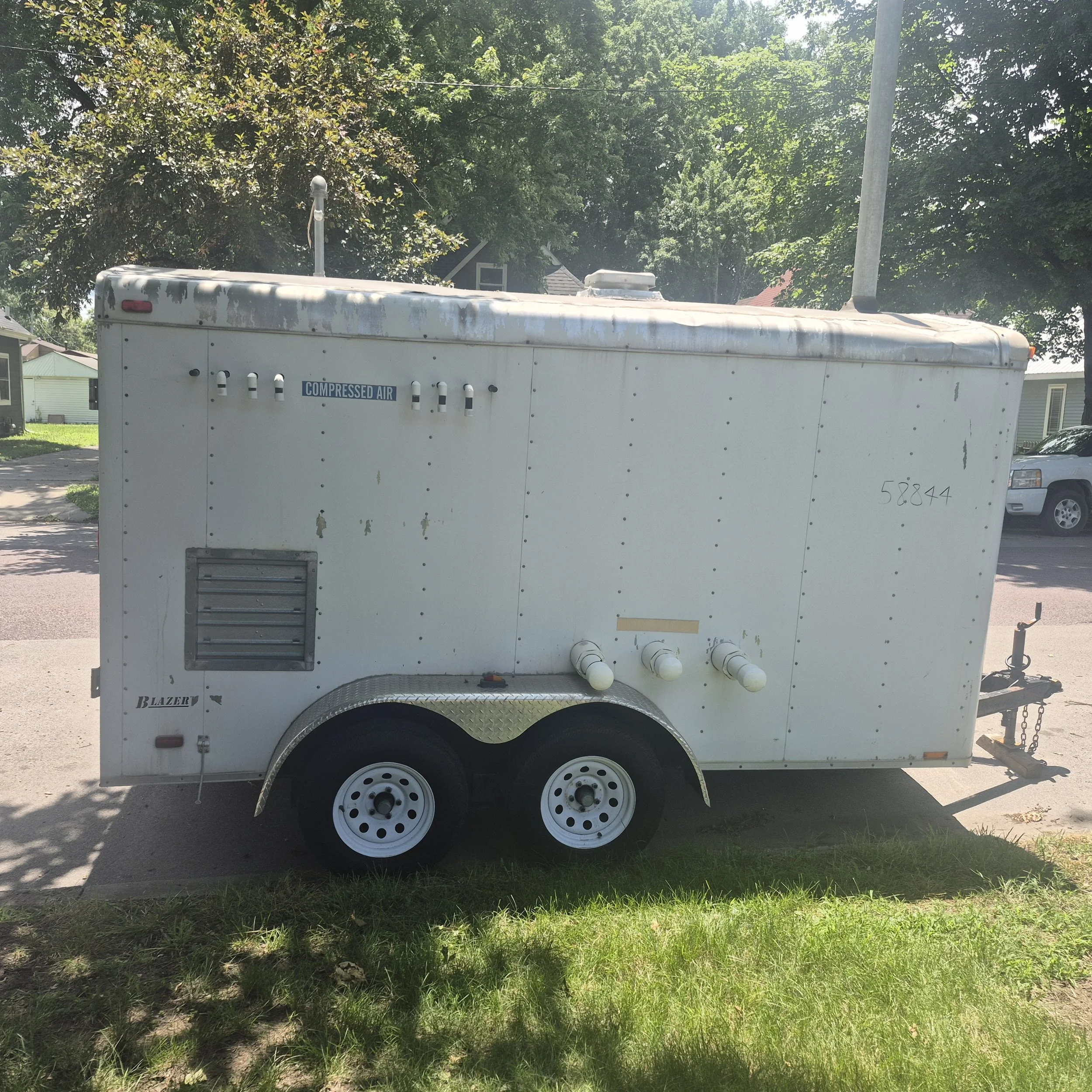

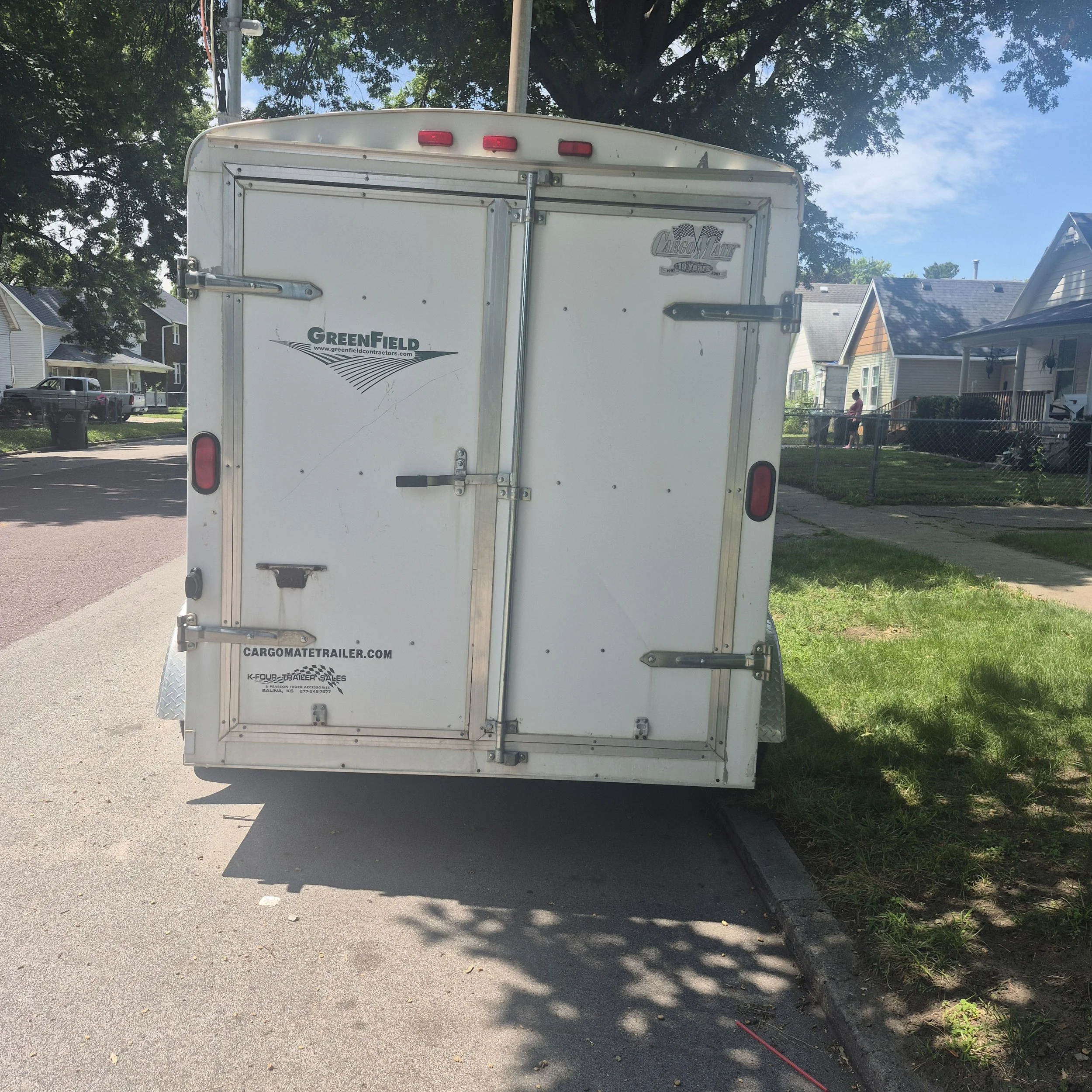

Trailer: Cargo Mate Blazer enclosed tandem-axle trailer

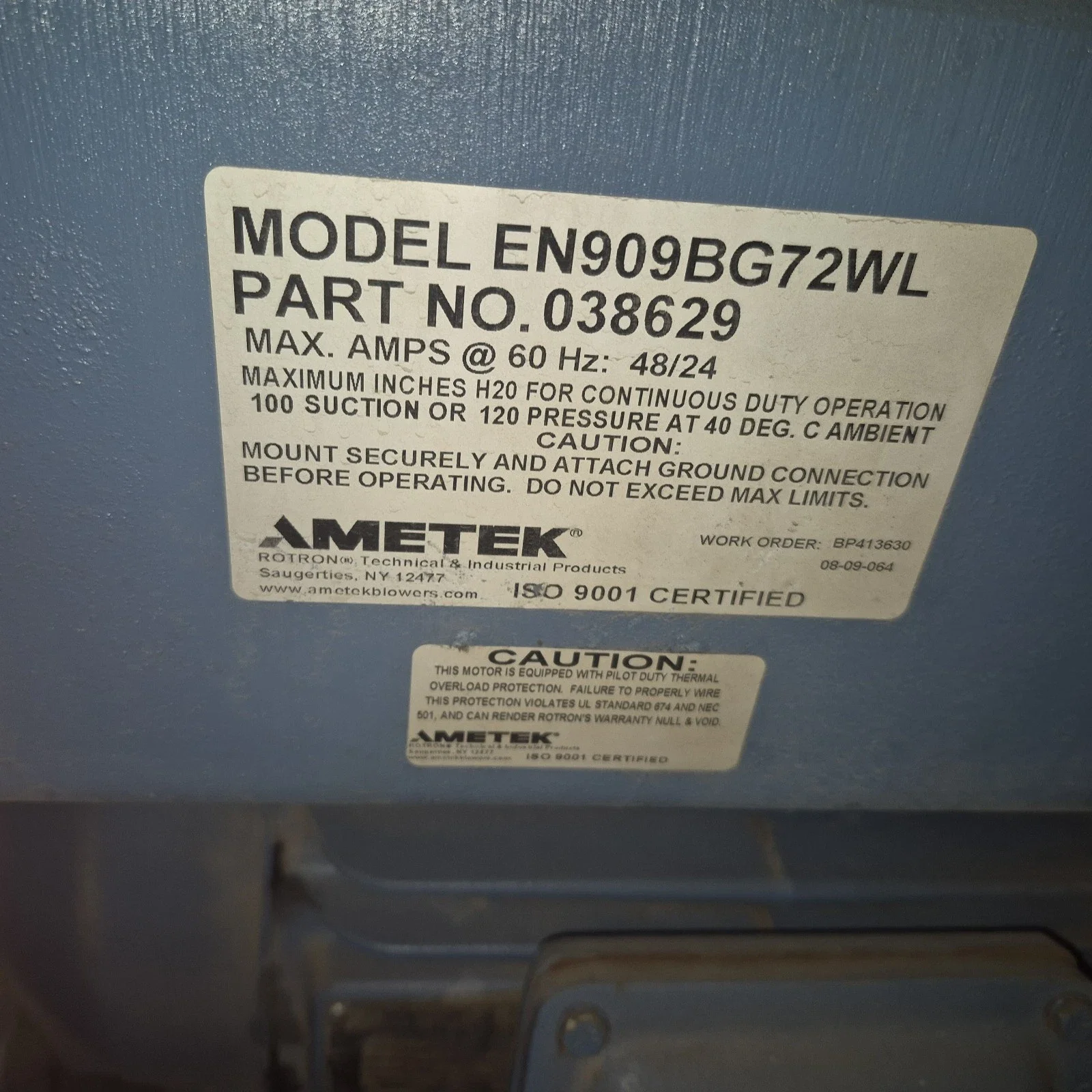

SVE blower: Ametek Rotron EN909BG72WL
SVE blower limits: 100 in. H₂O suction or 120 in. H₂O pressure
Moisture separator: 50-gallon capacity
Vacuum filter: Solberg CSL-235P-300
SVE flow meters: Blue-White F-452N, 40–240 SCFM

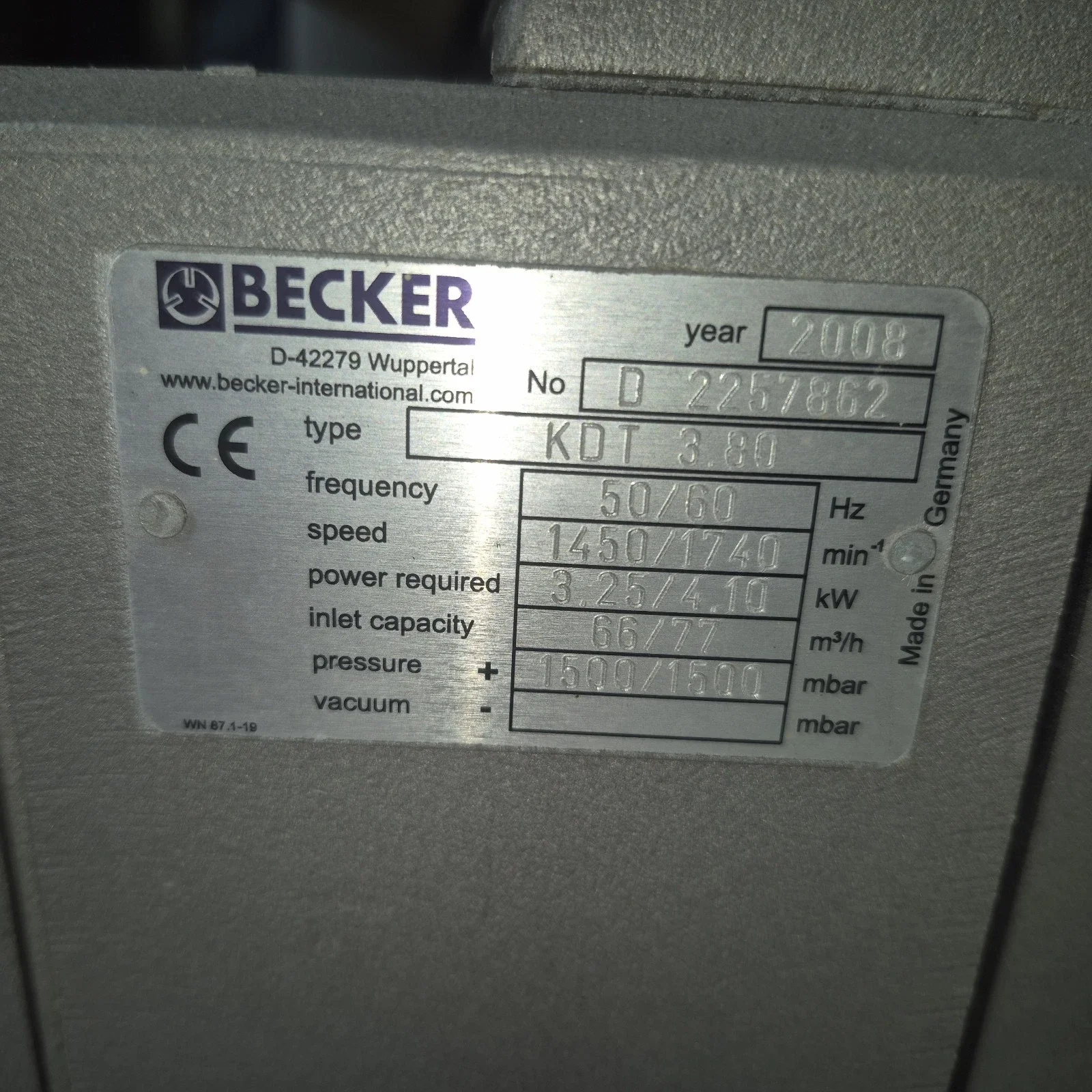

Air-sparge unit: Becker KDT 3.80
Becker capacity: 66/77 m³/h at 50/60 Hz
Maximum Becker pressure: 1,500 mbar
Sparge motor: Toshiba 7.5 HP, 230/460V, three-phase
Sparge flow meters: Blue-White, 1–12 SCFM
Transfer pump: Myers CT15FAB
Monitoring: Sensaphone 2000

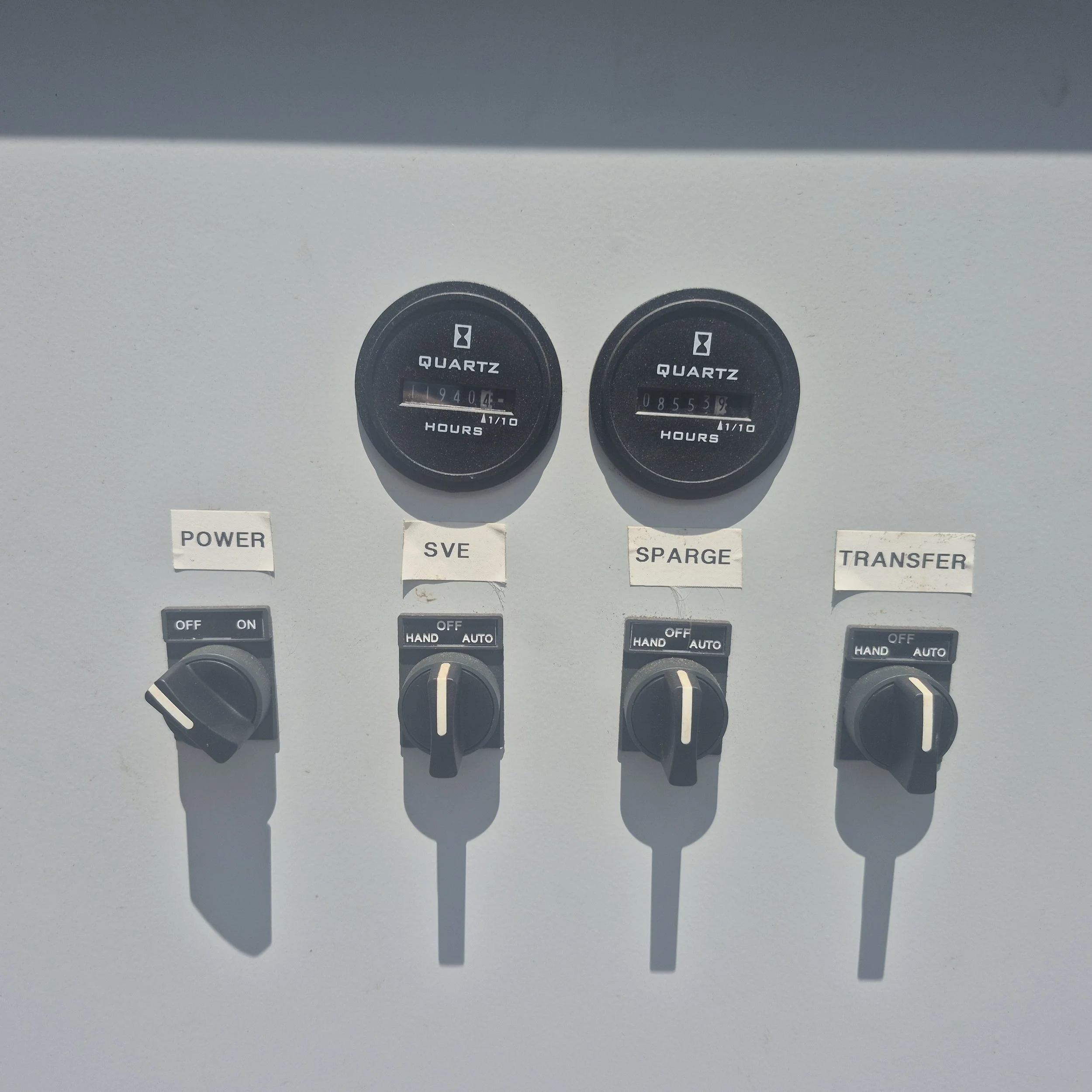

Controls: SVE, sparge, and transfer Hand/Off/Auto controls

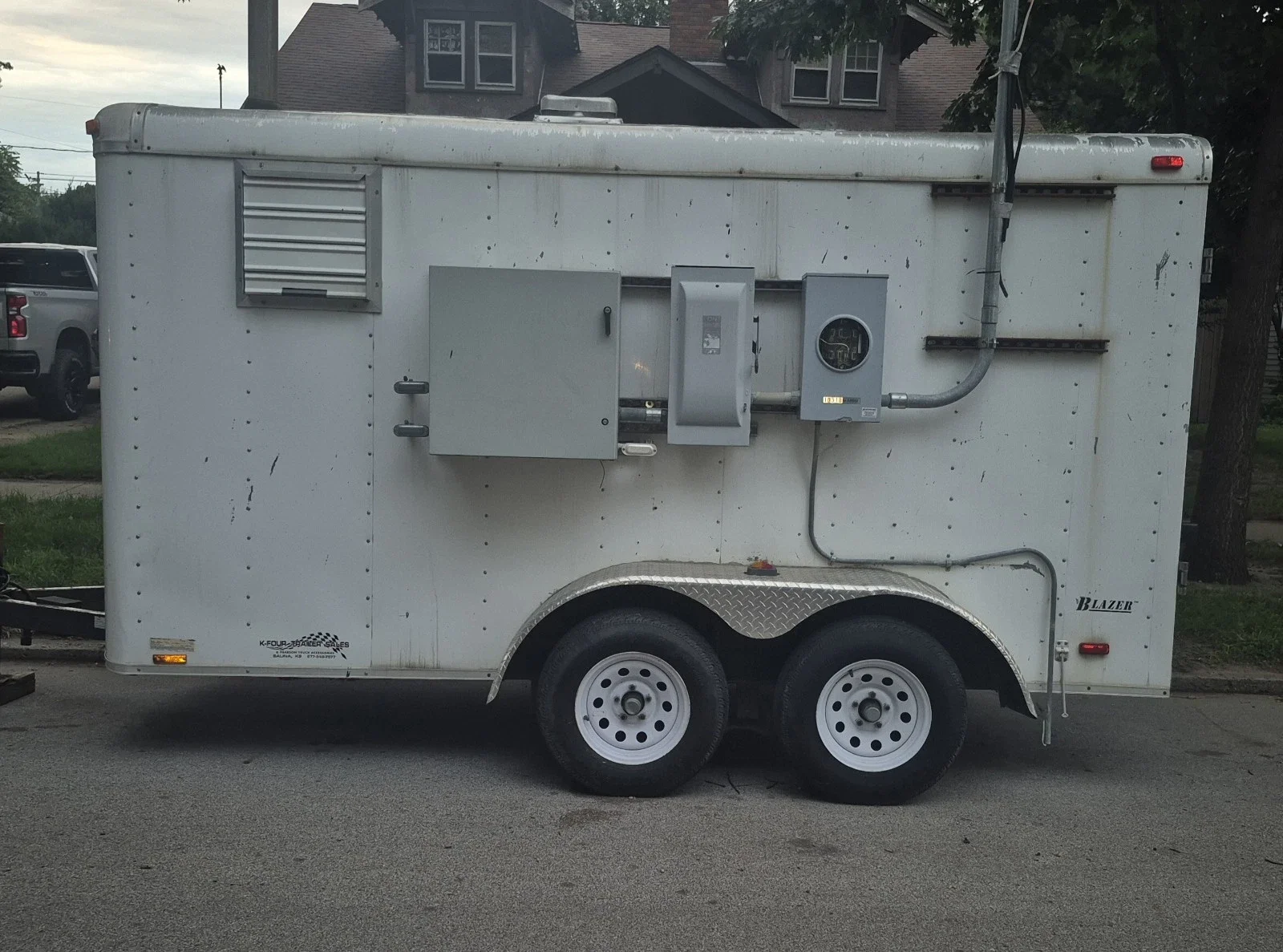

The Toshiba air-sparge motor is rated for 230/460V, three-phase, 60 Hz operation. The Ametek SVE blower nameplate lists maximum amperage of 48/24 amps at 60 Hz. The trailer includes exterior electrical service equipment, meter, disconnect, and an integrated control cabinet.
The system’s present configured voltage, total connected load, and required main service amperage should be confirmed before installation.
This is a used surplus remediation system. Industrial Jerry LLC has not connected, operated, or performance-tested the equipment. It is offered as-is, with buyer inspection encouraged. Component condition, electrical configuration, operating capacity, completeness, and suitability for a specific remediation project should be independently verified.
